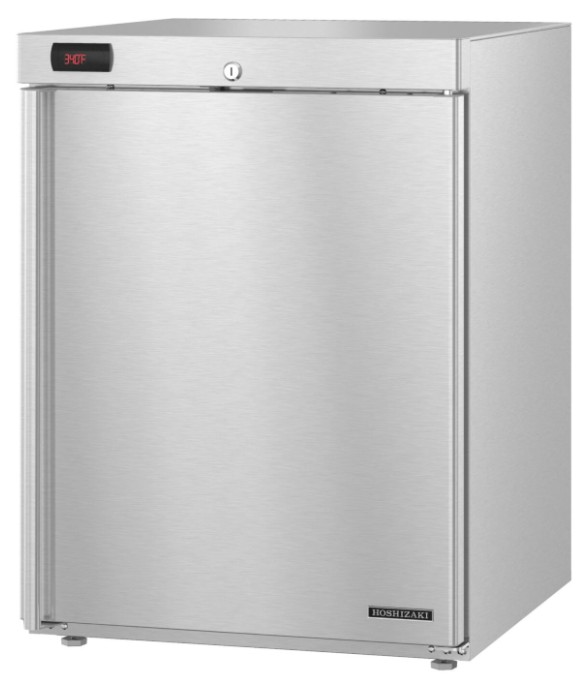

Hoshizaki 23" 3.9 Cu. Ft. Stainless Steel Single Section Compact Undercounter Refrigerator with Solid Doors

Product Overview

Stainless steel exterior (front, sides, top) and a stainless steel interior

Field reversible door with lock (no kit required)

Full door length stainless steel door handle

Stainless steel interior with LED lights

Insulated with environmentally friendly insulation

(3) epoxy coated wire shelves adjustable in 1-1/2″ increments on anodized aluminum support

Electronic controls with LED temperature display and audio/visual alarm

R-600a refrigerant

(4) 0.5″ Built in adjustable legs are standard

Automatic off-cycle defrost

Electrical Specs

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 0.64 kwh/day, Amperage: 1.1, Max Fuse/HACR Breaker: 15 A

Operating Limits

Ambient Temp Range: 45 – 100°F, Voltage Range: 115 – 127V, Control Setpoint Range: 34 – 52°F, Refrigerant: R-600a

Refrigeration Data

Nominal Compression of 501 BTU/hr at 1/8 HP, Heat Rejection: 648 BTU/hr

Storage Specifications

Nominal storage capacity: 3.87 ft3, Interior storage capacity: 3.87 ft3, Door opening: 23.4″ W x 31.5″ H, Depth with door fully extended: 46.7″ D, Shelves included: 3
