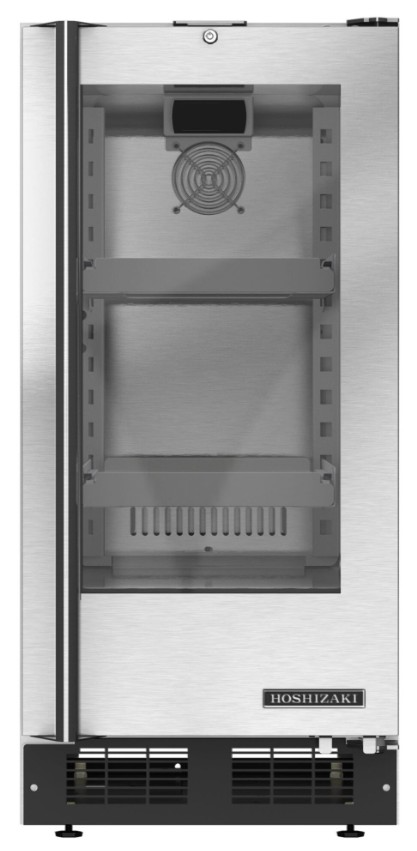

Hoshizaki 15" 2.5 Cu. Ft. Stainless Steel Single Section Compact Undercounter Refrigerator

Product Overview

Stainless steel exterior (front, sides, top) and a stainless steel interior

Field reversible door with lock (no kit required)

Full door length stainless steel door handle

Stainless steel interior with LED lights

Insulated with environmentally friendly insulation

(2) stainless steel slide out shelves adjustable in 1.41″ increments on anodized aluminum supports

Electronic controls with LED temperature display

R-600a refrigerant

(4) 1″ Built in adjustable legs are standard

Automatic off-cycle defrost

Shelf capacity: approx. (18) 20oz. bottles

Electrical Specs

Electrical Connection: 5 – 15P NEMA, 115v/60/1, 9 ft. cord and plug, Energy Consumption: 0.54 kwh/day, Amperage: 0.09, Max Fuse/HACR Breaker: 15 A

Operating Limits

Ambient Temp Range: 45 – 90°F, Voltage Range: 104 – 127V, Control Setpoint Range: 28 – 40°F, Refrigerant: R-600a

Refrigeration Data

Nominal Compres. of 222 BTU/hr at 1/10 HP, Heat Rejection: 145 BTU/hr

Storage Specifications

Nominal storage capacity: 2.54 ft3, Interior storage capacity: 2.54 ft3, Door opening: 14.8″ W x 25.75″ H, Depth with door fully extended: 37.25″ D, Shelves included: 2
