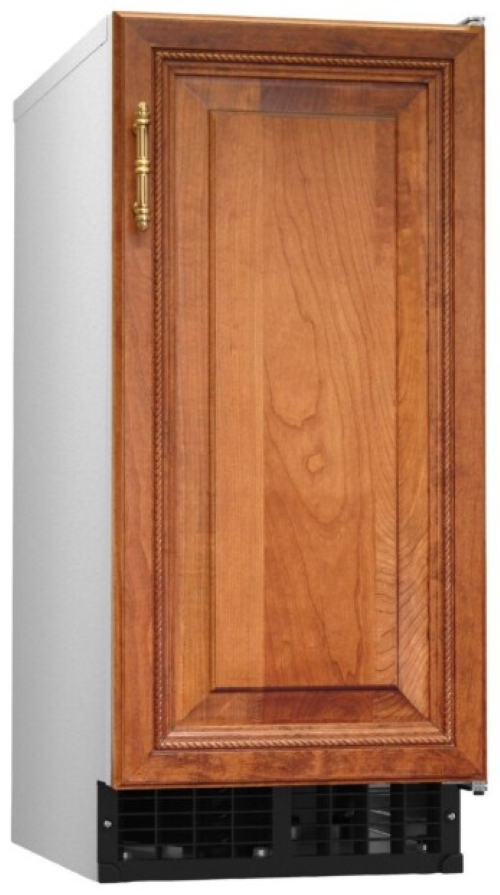

Product Overview
The undercounter design is less than 34″ tall. The air-cooled design also features a front in, front out airflow system that eliminates the need for side and rear clearance. Perfect for fitting into tight spaces. UL approved for outdoor use. Drain pump not included.
Up to 92 lbs of ice produced per 24 hours
Up to 27 lbs of built-in storage capacity (ft3)
Produces mini cubelet nugget-style ice
Undercounter design is less than 34″ tall
Front in, front out airflow
UL approved for outdoor use
Swing style field reversable door
(-DS) Accommodates custom cabinet door (not included), DS door reversal kit (HS-0229)
Environmentally friendly R290 refrigerant
Electrical Specs
Single phase, 115v/60/1, 6 ft cord with NEMA 5-15 Plug, Amperage: 2.8, Max Fuse/HACR Breaker: 15 A
Operating Limits
Ambient Temp Range: 45 – 100°F, Water Temp Range: 45 – 90°F, Water Pressure: 10 – 113psig, Voltage Range: 104 – 127V, Heat Rejection: 1400 BTU/hr, Refrigerant Charge: R290 (1.9 oz. / 53.86 g)
Plumbing Specs
1/2″ FPT Inlet, Minimum 1/4″ Nominal ID Copper Water Tubing or Equivalent, 1/2″ FPT Outlet, Minimum 1/2″ Nominal ID Drain Hard Pipe or Equivalent
Utility Consumption
8.5 kWh per 100 lbs @ 90/70, 12 gal of Potable Water per 100 lbs @ 90/70
